Slim Swing Barrier Gate 1 Line Otomatis

Slim Swing Barrier Gate 1 Line Otomatis

Brand : IXHA
Type : SSB101

Framework Material : 304 Full Stainless Steel
Arm Material : Stainless Steel
Dimension : 168 * 1090 mm
Passage Width : 1640 mm
Passing Direction : Single directional
Power Supply : AC220V/110V, 50/60Hz
Operation Voltage : 24V DC
Power Consumption : 40W
Operation Temperature : -15 C – 60 C
Operation Humidity : 0 ~ 95% (No freeze)
Working Environment : Indoor / Outdoor
Flow Rate : 30 people per minute
LED Indicator : No
Infrared Sensor : Optional
Emergency : Automatic arm open when power off
Communication : Dry contact, Relay signal, RS485

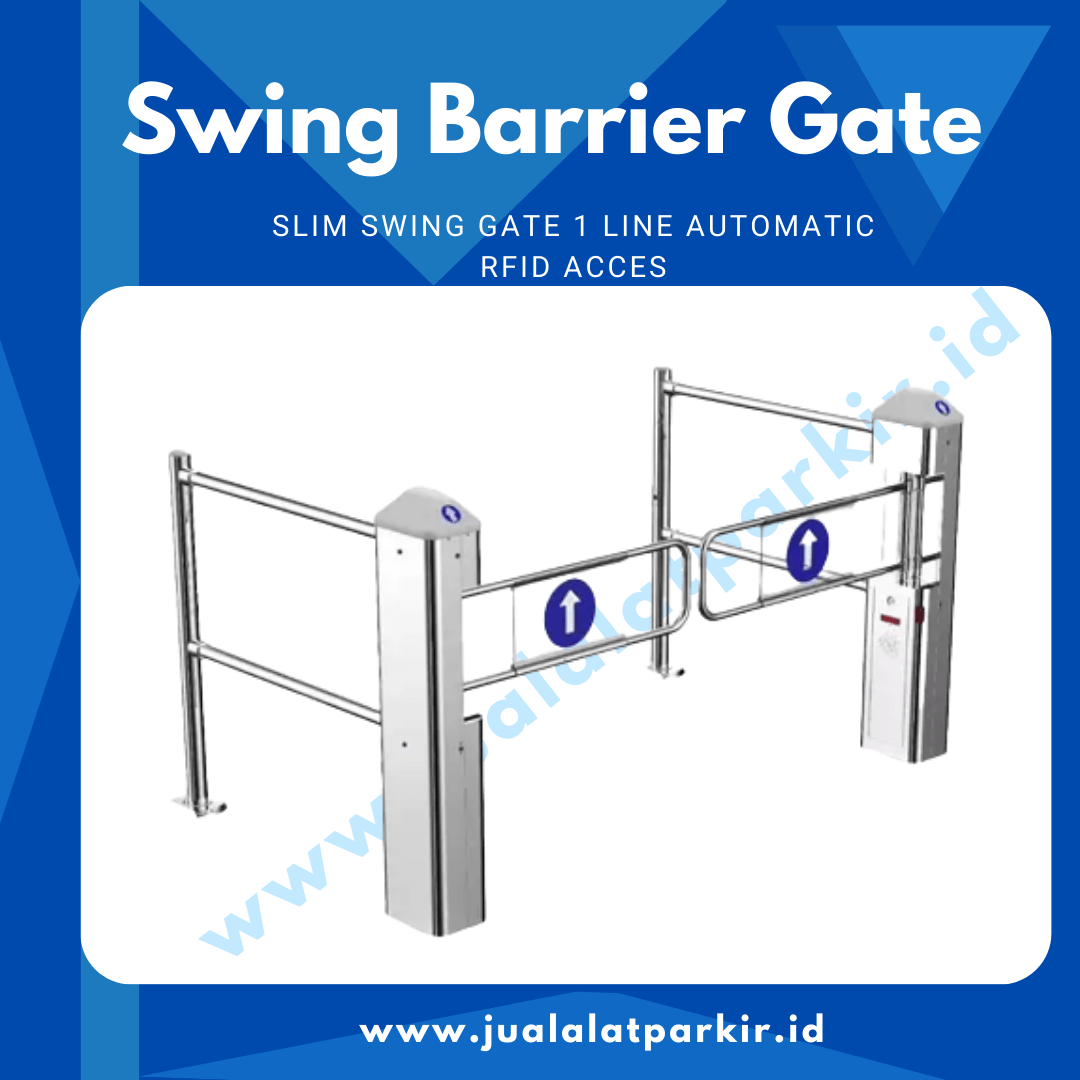

Size Dimensi lengkap cek Gambar 2

tersedia pilihan paket :
1. Barrier only ( hanya slim swing barrier gate saja )
2. RFID Access

Apa saja yang didapat :
1 Access Controller ixha ix112
1 RFID Wiegand ( PILIHAN NFC Mifare 13.56 / PROXIMITY 125 KHZ )
1 USB RFID READER ( PILIHAN NFC Mifare 13.56 / PROXIMITY 125 KHZ )

Fitur Software Access control ixha ix112 ( jika order dengan pilihan + RFID ACCESS ) :
– Kapasitas Kartu : tidak terbatas
– Jumlah Transaksi : max 8192 transaksi per hari selama 365 hari, total = 365 x 8192 = 2.9 juta transaksi
– Data transaksi tidak hilang selama 1 tahun
– Dual mode : offline (stand alone) dan online (harus selalu terhubung ke PC server)
– Support capture camera untuk mode online ( optional )
– Fitur greeting saat memasuki area melewati gate
– Pembatasan waktu dan Pendataan Tamu Berkunjung
